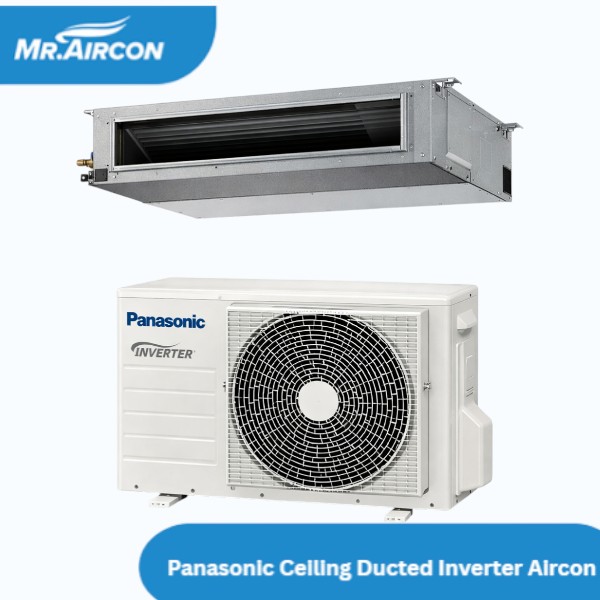

Panasonic Split-Type Ceiling Concealed Ducted Air Conditioner — PF3Q6 / PF3Q9 Series
Product Description
The Panasonic PF3Q6/PF3Q9 Series is a split-type ceiling concealed ducted inverter air conditioner designed for light commercial and large residential spaces. The indoor unit is completely hidden above the ceiling and connects to ductwork for discreet, centralized air distribution — ideal for offices, retail spaces, restaurants, hotels, and upscale homes.
It comes in two electrical configurations: single-phase (PF3Q6: 220V / 1ph / 60Hz) covering 2.0 HP to 6.0 HP, and three-phase (PF3Q9: 400V / 3ph / 60Hz) for the 5.0 HP and 6.0 HP models. All units use environmentally friendly R32 refrigerant.
Key Features
nanoe™ X Air Purification Technology — Panasonic’s patented system generates hydroxyl radicals that actively inhibit bacteria, viruses, allergens, mould, and odours. Proven effective in large-space environments by third-party testing, and works 24 hours a day even when cooling is off.
Inverter Technology — Variable-speed compressor continuously adjusts output to match the actual cooling load, eliminating the energy waste of on/off cycling and delivering faster cooling with lower electricity consumption.
150 Pa External Static Pressure (ESP) — Industry-leading ESP capability allows the unit to push air through longer and more complex duct systems, making it suitable for multi-room or multi-zone ducted layouts.
Ultra-Slim 250 mm Height — The compact indoor unit fits in tight ceiling plenums where other ducted units cannot.
Low Noise from 20 dB(A) — Leading-class sound levels make it suitable for bedrooms, meeting rooms, and other noise-sensitive spaces.
Flexible Air Intake — Rear intake as standard, with support for both horizontal and vertical installation orientations.
CONEX Next-Generation Remote Control — Advanced controller for scheduling, zoning, and system management (optional accessory).
Auto-Restart & Self-Diagnosis — Automatically resumes operation after power interruption and displays error codes for easy troubleshooting.
Technical Specifications
1-Phase Models — PF3Q6 (220V / 1ph / 60Hz)
| Model | Rating | Cooling Capacity | Rated Current | Max Current | EER | Indoor Unit (W×H×D mm) | Indoor Wt | Outdoor Unit (W×H×D mm) | Outdoor Wt |
|---|---|---|---|---|---|---|---|---|---|
| S/U-18PF3Q6 | 2.0 HP | 18,000 BTU/h | ~8.4 A | ~12.0 A | ~10.50 | 1,000 × 250 × 700 | ~24 kg | 740 × 556 × 290 | ~30 kg |
| S/U-21PF3Q6 | 2.5 HP | 21,000 BTU/h | ~9.8 A | ~14.0 A | ~10.45 | 1,000 × 250 × 700 | ~24 kg | 740 × 556 × 290 | ~34 kg |
| S/U-24PF3Q6 | 3.0 HP | 24,500 BTU/h | ~11.2 A | ~16.0 A | ~10.45 | 1,200 × 250 × 700 | ~28 kg | 740 × 556 × 290 | ~36 kg |
| S/U-30PF3Q6 | 3.5 HP | 30,500 BTU/h | ~14.0 A | ~18.0 A | ~10.42 | 1,200 × 250 × 700 | ~30 kg | 870 × 700 × 320 | ~40 kg |
| S/U-34PF3Q6 | 4.0 HP | 34,100 BTU/h | ~15.8 A | ~20.0 A | ~10.40 | 1,200 × 250 × 700 | ~32 kg | 870 × 700 × 320 | ~44 kg |
| S/U-43PF3Q6 | 5.0 HP | 43,100 BTU/h | ~19.5 A | ~25.0 A | ~10.40 | 1,400 × 250 × 730 | ~37 kg | 980 × 996 × 370 | ~45 kg |
| S/U-48PF3Q6 | 6.0 HP | 48,500 BTU/h | 22.5 A | 28.0 A | 10.39 | 1,400 × 250 × 730 | 39 kg | 980 × 996 × 370 | 48 kg |
3-Phase Models — PF3Q9 (400V / 3ph / 60Hz)
| Model | Rating | Cooling Capacity | Rated Current | Max Current | EER | Indoor Unit (W×H×D mm) | Indoor Wt | Outdoor Unit (W×H×D mm) | Outdoor Wt |
|---|---|---|---|---|---|---|---|---|---|
| S/U-43PF3Q9 | 5.0 HP | 43,100 BTU/h | ~11.3 A | ~15.0 A | ~10.40 | 1,400 × 250 × 730 | ~37 kg | 980 × 996 × 370 | ~46 kg |
| S/U-48PF3Q9 | 6.0 HP | 48,500 BTU/h | ~13.0 A | ~17.0 A | ~10.39 | 1,400 × 250 × 730 | 39 kg | 980 × 996 × 370 | ~50 kg |
