PRODUCT DESCRIPTION

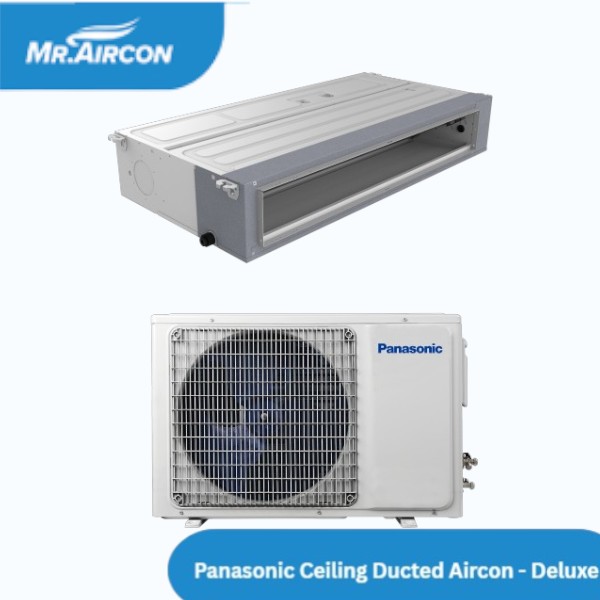

Panasonic NX Series Deluxe Adaptive Ducted Air Conditioner (PF3QA6 / PF3QA9)
The Panasonic NX Series Deluxe Ceiling Concealed Air Conditioner is a high-efficiency inverter ducted system designed for commercial, office, and residential applications requiring concealed installation and centralized air distribution.
It features a slim indoor unit (approx. 250 mm height), allowing installation above ceilings, with ductwork distributing conditioned air evenly throughout rooms. The system uses Panasonic’s inverter technology and eco-friendly R32 refrigerant for superior energy efficiency, reduced electricity consumption, and lower environmental impact.
The Deluxe series is equipped with advanced air purification, quiet operation, flexible installation options, and improved serviceability, making it suitable for modern buildings requiring hidden, efficient climate control systems.
GENERAL FEATURES
Energy Efficiency
-
Panasonic Inverter technology
-
Eco-friendly R32 refrigerant
-
Reduced annual energy consumption
-
Lower electricity cost compared to non-inverter units
Performance
-
Wide capacity range from 17,100 to 47,800 Btu/h
-
Stable cooling performance
-
Quiet indoor operation
Comfort & Air Quality
-
nanoe™ X air purification (NX Deluxe series)
-
Uniform air distribution via ducting
Technical Specification:
| Model | Capacity (HP) | Cooling Capacity (kW) | Cooling Capacity (Btu/h) | Power Supply |
|---|---|---|---|---|
| S/U-18PF3QA6 | 2.0 HP | 5.00 kW | 17,100 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-21PF3QA6 | 2.5 HP | 6.00 kW | 20,500 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-24PF3QA6 | 3.0 HP | 7.10 kW | 24,200 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-34PF3QA6 | 4.0 HP | 10.00 kW | 34,100 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-43PF3QA6 | 5.0 HP | 12.50 kW | 42,700 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-48PF3QA6 | 6.0 HP | 14.00 kW | 47,800 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-43PF3QA9 | 5.0 HP | 12.50 kW | 42,700 Btu/h | 400 V / 3Ø / 60Hz |
| S/U-48PF3QA9 | 6.0 HP | 14.00 kW | 47,800 Btu/h | 400 V / 3Ø / 60Hz |
