Description

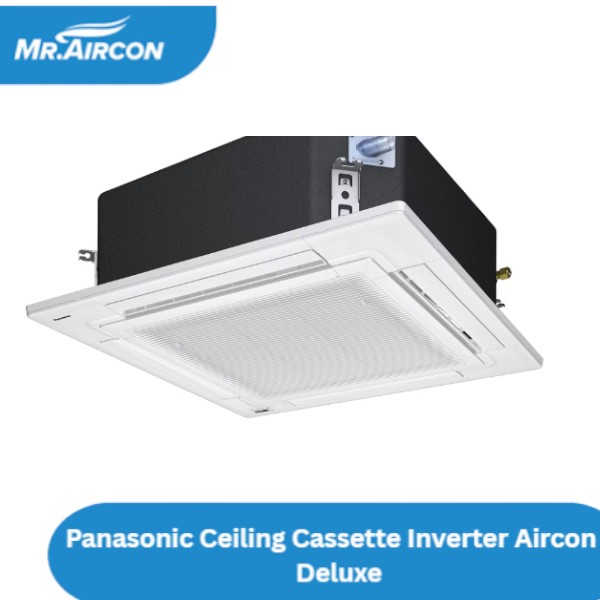

The Panasonic NX Series Deluxe 4-Way Ceiling Cassette Inverter (PU3 series) is a premium light commercial air conditioning solution. It is specifically designed for large, high-traffic spaces like offices, restaurants, and showrooms where air quality and consistent cooling are priorities.
Product Description
The “Deluxe” PU3 series is defined by its integrated health and smart features:
-
nanoe™ X Generator Mark 3: The highest grade of Panasonic’s air purification technology. It actively inhibits bacteria, viruses, allergens, and odors even in large areas.
-
360° Comfortable Airflow: The wide-angle louvers and a redesigned “Twisted 3D Blade” turbo fan ensure that cool air reaches every corner of the room without leaving “dead zones.”
-
High Ceiling Compatibility: These units can effectively push air down from heights of up to 5 meters, making them ideal for high-ceiling lobbies or open-plan offices.
-
Smart Control (CONEX): Features next-generation IoT connectivity, allowing users to control the unit via a smartphone using the Panasonic Comfort Cloud App.
-
Compact & Sleek Design: Features a flat-panel aesthetic that blends into modern ceilings and a built-in drain pump that can lift condensation up to 850mm.
Technical Specification:
| Model (Indoor/Outdoor) | HP | Cooling Capacity (BTU/h) | Power Source | Dimension (Indoor) | Pipe Size (Gas/Liq) |
| S/U-18PU3QA6 | 2.0 | 17,100 | 230V / 1Ph / 60Hz | 840x256x840 mm | 1/2″ – 1/4″ |
| S/U-21PU3QA6 | 2.5 | 20,500 | 230V / 1Ph / 60Hz | 840x256x840 mm | 1/2″ – 1/4″ |
| S/U-24PU3QA6 | 3.0 | 24,200 | 230V / 1Ph / 60Hz | 840x256x840 mm | 5/8″ – 3/8″ |
| S/U-34PU3QA6 | 4.0 | 34,100 | 230V / 1Ph / 60Hz | 840x319x840 mm | 5/8″ – 3/8″ |
| S/U-43PU3QA6 | 5.0 | 42,700 | 230V / 1Ph / 60Hz | 840x319x840 mm | 5/8″ – 3/8″ |
| S/U-48PU3QA6 | 6.0 | 47,800 | 230V / 1Ph / 60Hz | 840x319x840 mm | 5/8″ – 3/8″ |
| S/U-43PU3QA9 | 5.0 | 42,700 | 380-415V / 3Ph | 840x319x840 mm | 5/8″ – 3/8″ |
| S/U-48PU3QA9 | 6.0 | 47,800 | 380-415V / 3Ph | 840x319x840 mm | 5/8″ – 3/8″ |
