These units are part of Koppel’s Chilled Water HVAC System Indoor Units designed for commercial buildings, offices, restaurants, and other spaces where a central chiller supplies chilled water to indoor air handlers (fan coil units).
How they work (general):
A chilled water coil (connected to a chiller plant) acts as the cooling medium.
A fan draws room air over the coil, cooling and circulating chilled air.
No refrigerant compressor is inside the FCU — cooling source is the chilled water loop.
These are suitable for multi-unit installations tied to a chiller or central plant.
✔ Efficient chilled water cooling for commercial indoor comfort
✔ Adjustable airflow & louvers
✔ Quiet operation
✔ Durable housing suited for continuous operation
✔ Easy to maintain coil and filters
The Koppel Super Inverter Lunaire Series is a high-performing split type wall-mounted air conditioner with a high CSPF and 5-Star Energy Rating. It features a 4D Air Filter System and Super Ionizer for cleaner and fresher indoor air, with up to 60% energy savings, 3D Airflow, and a wide range of smart comfort features.
Available in 1.0HP, 1.5HP, 2.0HP, 2.5HP, and 3.0HP capacities.
| Specification | KV09WM-ARF31A (1.0HP) | KV12WM-ARF31A (1.5HP) | KV18WM-ARF31A (2.0HP) | KV24WM-ARF31A (2.5HP) | KV27WM-ARF31A (3.0HP) |
|---|---|---|---|---|---|
| Cooling Capacity | 9,000 BTU/h | 12,000 BTU/h | 18,000 BTU/h | 22,000 BTU/h | 26,000 BTU/h |
| Rated Power | 810 W | 1,095 W | 1,890 W | 2,170 W | 2,475 W |
| Rated Current | 5.20 A | 7.15 A | 8.04 A | 9.50 A | 11.50 A |
| Power Supply | 230V/60Hz/1Ph | 230V/60Hz/1Ph | 230V/60Hz/1Ph | 230V/60Hz/1Ph | 230V/60Hz/1Ph |
| EER | 11.11 BTU/W-Hr | 10.96 BTU/W-Hr | 9.52 BTU/W-Hr | 10.14 BTU/W-Hr | 10.51 BTU/W-Hr |
| CSPF | 5.15 | 5.18 | 5.00 | 4.47 | 4.82 |
| Star Rating | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ | ★★★★★ |
| Refrigerant | R32 | R32 | R32 | R32 | R32 |
| Applicable Area | 12–18 sqm | 16–23 sqm | 24–35 sqm | 30–43 sqm | 33–48 sqm |
| Airflow (Hi/Mi/Lo) | 486/390/280 CMH | 580/450/310 CMH | 800/660/500 CMH | 960/750/600 CMH | 920/730/550 CMH |
| Noise Level (Hi/Mi/Lo) | 39/33/27 dB(A) | 40.5/34/26.5 dB(A) | 44.5/38.5/31 dB(A) | 47/41/37 dB(A) | 46.5/40.5/33.5 dB(A) |
| Ambient Temp Range | 17–32°C | 17–32°C | 17–32°C | 17–32°C | 17–32°C |
| Operation Temp Range | 17–30°C | 17–30°C | 17–30°C | 17–30°C | 17–30°C |
| Indoor Dimensions (WxDxH) | 715×194×285 mm | 805×194×285 mm | 957×213×302 mm | 1,040×220×327 mm | 1,040×220×327 mm |
| Indoor Weight (Net/Gross) | 7.2/9.3 kg | 7.7/9.8 kg | 10.4/13.2 kg | 13.0/16.5 kg | 13.1/16.4 kg |
| Outdoor Dimensions (WxDxH) | 720×270×495 mm | 720×270×495 mm | 765×303×555 mm | 805×330×554 mm | 890×342×673 mm |
| Outdoor Weight (Net/Gross) | 18.8/20.7 kg | 19.9/21.8 kg | 24.4/26.7 kg | 29/31.5 kg | 39.4/42.4 kg |
| Liquid Pipe Size | 6.35 mm (1/4") | 6.35 mm (1/4") | 6.35 mm (1/4") | 6.35 mm (1/4") | 6.35 mm (1/4") |
| Gas Pipe Size | 9.52 mm (3/8") | 12.7 mm (1/2") | 12.7 mm (1/2") | 12.7 mm (1/2") | 15.9 mm (5/8") |
| Max Pipe Length | 25 m | 25 m | 30 m | 30 m | 50 m |
| Max Level Difference | 10 m | 10 m | 20 m | 20 m | 25 m |
Panasonic High Static Ducted (Non Inverter) refers to ducted HVAC (air conditioning) indoor units designed to produce higher external static pressure and large airflow for duct networks, especially without variable‑speed compressor control (non‑inverter type). These are typically concealed ceiling units paired with separate outdoor compressor/condenser units as part of a commercial or light‑commercial HVAC system.
High Static Pressure:
These units can push conditioned air farther through long or complex ductwork because they generate higher static pressure than standard ducted units.
Large Airflow:
They deliver greater air volume, suitable for large rooms, halls, offices, or multi‑room systems where multiple vents are used.
Non‑Inverter Compressor:
The non‑inverter designation means the compressor runs at fixed speed — on/off cycling — rather than dynamically adjusting speed like inverter systems do. This usually means simpler control and lower upfront cost, though less energy savings compared to inverter variants.
These ducted models are engineered to support demanding installations and typically have these characteristics:
➤ Tailored for ducted HVAC integration
Concealed units that fit above ceilings or in service spaces
Connect to ducts to feed air into multiple rooms or zones
➤ Strong airflow performance
Designed to handle extended duct runs and multiple registers
➤ High static pressure
Allows greater flexibility in layout due to enhanced fan capacity
➤ Robust design for commercial use
Built to operate reliably in larger or institutional environments
These systems (regardless of inverter or non‑inverter compressor type) are suitable for:
Offices, shops, and retail spaces
Hotels and hospitality spaces
Large open residential areas with ducted systems
Buildings requiring integrated ventilation with large airflow
Panasonic High Static Ducted (Non Inverter) refers to ducted HVAC (air conditioning) indoor units designed to produce higher external static pressure and large airflow for duct networks, especially without variable‑speed compressor control (non‑inverter type). These are typically concealed ceiling units paired with separate outdoor compressor/condenser units as part of a commercial or light‑commercial HVAC system.
High Static Pressure:
These units can push conditioned air farther through long or complex ductwork because they generate higher static pressure than standard ducted units.
Large Airflow:
They deliver greater air volume, suitable for large rooms, halls, offices, or multi‑room systems where multiple vents are used.
Non‑Inverter Compressor:
The non‑inverter designation means the compressor runs at fixed speed — on/off cycling — rather than dynamically adjusting speed like inverter systems do. This usually means simpler control and lower upfront cost, though less energy savings compared to inverter variants.
These ducted models are engineered to support demanding installations and typically have these characteristics:
➤ Tailored for ducted HVAC integration
Concealed units that fit above ceilings or in service spaces
Connect to ducts to feed air into multiple rooms or zones
➤ Strong airflow performance
Designed to handle extended duct runs and multiple registers
➤ High static pressure
Allows greater flexibility in layout due to enhanced fan capacity
➤ Robust design for commercial use
Built to operate reliably in larger or institutional environments
These systems (regardless of inverter or non‑inverter compressor type) are suitable for:
Offices, shops, and retail spaces
Hotels and hospitality spaces
Large open residential areas with ducted systems
Buildings requiring integrated ventilation with large airflow
The Panasonic floor‑standing inverter aircon series is designed for powerful, efficient cooling in medium to large spaces, whether for homes, offices, shops, or commercial areas. These units use DC inverter technology to precisely control compressor speed, delivering faster cooling, lower energy consumption, and quieter operation than non‑inverter systems.
A standout feature across the range is nanoe™ X air purification technology, which helps improve indoor air quality by inhibiting certain bacteria, viruses, pollens, allergens, mould, and odors, contributing to fresher and healthier air 24/7.
Built with adjustable airflow direction (vertical and horizontal), these units deliver cool air where you need it most — even across wide or deep spaces — while a stylish control panel and intuitive remote make operation simple and convenient.
Additional practical features like Auto Fan Mode, Random Auto Restart after power interruptions, and timer settings give added flexibility and comfort to daily use.
Inverter Compressor – Efficient cooling and more consistent temperature control with reduced power spikes.
nanoe™ X Air Purification – Helps remove airborne impurities and odors without extra maintenance.
Wide Airflow Reach – Delivers cool air up to long distances for large or open spaces.
Adjustable Airflow Direction – Vertical/horizontal airflow for targeted comfort.
Auto Fan Mode – Automatically adjusts fan speed based on room conditions.
Auto Restart After Power Outages – Resumes previous settings without manual input.
Wireless Remote Control Included – Easy temperature and mode adjustments from anywhere in the room.
| Specification | S/U‑24PB3Q6 | S/U‑34PB3Q6 | S/U‑43PB3Q6 | S/U‑48PB3Q6 |
|---|---|---|---|---|
| Rated Cooling Capacity | 7.25 kW / 24,600 Btu/h | 10.00 kW / 34,100 Btu/h | 12.53 kW / 42,700 Btu/h | 14.00 kW / 47,750 Btu/h |
| Cooling Range (Min–Max) | 1.00–7.50 kW (3,410–25,570 Btu/h) | 1.20–10.30 kW (4,090–35,120 Btu/h) | 2.00–13.50 kW (6,820–46,030 Btu/h) | 2.00–14.60 kW (6,820–49,780 Btu/h) |
| Rated Current / Max Current | 11.2 A / 13.7 A | 15.1 A / 16.9 A | 20.3 A / 26.9 A | 25.6 A / 28.1 A |
| Power Source | 230 V, 1Ø, 60 Hz | 230 V, 1Ø, 60 Hz | 230 V, 1Ø, 60 Hz | 230 V, 1Ø, 60 Hz |
| Refrigerant | R32/R410A (model dependent) | R410A | R410A | R410A |
| CSPF / Efficiency | ~4.05 | ~4.06 | ~4.06 | ~4.06 |
| Cooling EER (Btu/h·W) | ~9.64 | ~9.88 | ~9.55 | ~8.52 |
| Indoor Airflow Vol. | 15.5 m³/min | 32.0 m³/min | 32.0 m³/min | 32.0 m³/min |
| Indoor Noise (Hi/Lo) | 45/33 dB(A) | 53/44 dB(A) | 53/44 dB(A) | 53/44 dB(A) |
| Indoor Unit Dimensions (HxWxD) | 1,680 × 500 × 318 mm | 1,880 × 600 × 357 mm | 1,880 × 600 × 357 mm | 1,880 × 600 × 357 mm |
| Indoor Net Weight | 29.5 kg | 45 kg | 45 kg | 45 kg |
| Outdoor Unit Dimensions (HxWxD) | 626 × 825 × 320 mm | 786 × 900 × 320 mm | 996 × 940 × 340 mm | 996 × 940 × 340 mm |
| Outdoor Net Weight | 36 kg | 45 kg | 74 kg | 74 kg |
Panasonic NX Series Deluxe Adaptive Ducted Air Conditioner (PF3QA6 / PF3QA9)
The Panasonic NX Series Deluxe Ceiling Concealed Air Conditioner is a high-efficiency inverter ducted system designed for commercial, office, and residential applications requiring concealed installation and centralized air distribution.
It features a slim indoor unit (approx. 250 mm height), allowing installation above ceilings, with ductwork distributing conditioned air evenly throughout rooms. The system uses Panasonic’s inverter technology and eco-friendly R32 refrigerant for superior energy efficiency, reduced electricity consumption, and lower environmental impact.
The Deluxe series is equipped with advanced air purification, quiet operation, flexible installation options, and improved serviceability, making it suitable for modern buildings requiring hidden, efficient climate control systems.
Energy Efficiency
Panasonic Inverter technology
Eco-friendly R32 refrigerant
Reduced annual energy consumption
Lower electricity cost compared to non-inverter units
Performance
Wide capacity range from 17,100 to 47,800 Btu/h
Stable cooling performance
Quiet indoor operation
Comfort & Air Quality
nanoe™ X air purification (NX Deluxe series)
Uniform air distribution via ducting
| Model | Capacity (HP) | Cooling Capacity (kW) | Cooling Capacity (Btu/h) | Power Supply |
|---|---|---|---|---|
| S/U-18PF3QA6 | 2.0 HP | 5.00 kW | 17,100 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-21PF3QA6 | 2.5 HP | 6.00 kW | 20,500 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-24PF3QA6 | 3.0 HP | 7.10 kW | 24,200 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-34PF3QA6 | 4.0 HP | 10.00 kW | 34,100 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-43PF3QA6 | 5.0 HP | 12.50 kW | 42,700 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-48PF3QA6 | 6.0 HP | 14.00 kW | 47,800 Btu/h | 230 V / 1Ø / 60Hz |
| S/U-43PF3QA9 | 5.0 HP | 12.50 kW | 42,700 Btu/h | 400 V / 3Ø / 60Hz |
| S/U-48PF3QA9 | 6.0 HP | 14.00 kW | 47,800 Btu/h | 400 V / 3Ø / 60Hz |
The Panasonic Split-Type Ceiling Mounted Deluxe Inverter Air Conditioner is a premium-grade, commercial and residential air conditioning solution designed for spaces that demand powerful, efficient, and clean cooling without the visual footprint of a wall-mounted unit. Suspended from the ceiling, it blends seamlessly into interior environments — making it ideal for offices, showrooms, retail stores, clinics, restaurants, and large residential spaces.
What sets the Deluxe series apart from the standard Inverter line is its inclusion of nanoe™ X air purification technology — Panasonic's proprietary system that releases hydroxyl radicals to actively inhibit airborne and surface-adhered viruses, bacteria, allergens, PM2.5 particles, and odors — providing 24/7 protection even when cooling is off.
Powered by Inverter technology and using environmentally friendly R32 refrigerant, this unit delivers precise temperature control, significant energy savings over conventional non-inverter systems, and quiet, stable operation.
These models are standard for most residential and light commercial applications.
| Model Number | HP Rating | Cooling Capacity (Btu/h) | Power Input (W) | EER (Btu/hW) | Indoor Dimensions (WxHxD mm) |
| S/U-S18PT3QA6 | 2.0 HP | 17,100 | 1,080 | 15.83 | 960 x 235 x 690 |
| S/U-S21PT3QA6 | 2.5 HP | 20,500 | 1,270 | 16.14 | 960 x 235 x 690 |
| S/U-S24PT3QA6 | 3.0 HP | 24,200 | 1,700 | 14.24 | 1,275 x 235 x 690 |
| S/U-S34PT3QA6 | 4.0 HP | 34,100 | 2,350 | 14.51 | 1,590 x 235 x 690 |
| S/U-S43PT3QA6 | 5.0 HP | 42,700 | 3,750 | 11.39 | 1,590 x 235 x 690 |
| S/U-S48PT3QA6 | 6.0 HP | 47,800 | 4,240 | 11.27 | 1,590 x 235 x 690 |
Designed for large commercial buildings with 3-phase electrical systems to ensure load balancing and efficiency.
| Model Number | HP Rating | Cooling Capacity (Btu/h) | Power Input (W) | EER (Btu/hW) | Indoor Dimensions (WxHxD mm) |
| S/U-S43PT3QA9 | 5.0 HP | 42,700 | 3,420 | 12.49 | 1,590 x 235 x 690 |
| S/U-S48PT3QA9 | 6.0 HP | 47,800 | 4,100 | 11.66 | 1,590 x 235 x 690 |
The "Deluxe" PU3 series is defined by its integrated health and smart features:
nanoe™ X Generator Mark 3: The highest grade of Panasonic's air purification technology. It actively inhibits bacteria, viruses, allergens, and odors even in large areas.
360° Comfortable Airflow: The wide-angle louvers and a redesigned "Twisted 3D Blade" turbo fan ensure that cool air reaches every corner of the room without leaving "dead zones."
High Ceiling Compatibility: These units can effectively push air down from heights of up to 5 meters, making them ideal for high-ceiling lobbies or open-plan offices.
Smart Control (CONEX): Features next-generation IoT connectivity, allowing users to control the unit via a smartphone using the Panasonic Comfort Cloud App.
Compact & Sleek Design: Features a flat-panel aesthetic that blends into modern ceilings and a built-in drain pump that can lift condensation up to 850mm.
| Model (Indoor/Outdoor) | HP | Cooling Capacity (BTU/h) | Power Source | Dimension (Indoor) | Pipe Size (Gas/Liq) |
| S/U-18PU3QA6 | 2.0 | 17,100 | 230V / 1Ph / 60Hz | 840x256x840 mm | 1/2" - 1/4" |
| S/U-21PU3QA6 | 2.5 | 20,500 | 230V / 1Ph / 60Hz | 840x256x840 mm | 1/2" - 1/4" |
| S/U-24PU3QA6 | 3.0 | 24,200 | 230V / 1Ph / 60Hz | 840x256x840 mm | 5/8" - 3/8" |
| S/U-34PU3QA6 | 4.0 | 34,100 | 230V / 1Ph / 60Hz | 840x319x840 mm | 5/8" - 3/8" |
| S/U-43PU3QA6 | 5.0 | 42,700 | 230V / 1Ph / 60Hz | 840x319x840 mm | 5/8" - 3/8" |
| S/U-48PU3QA6 | 6.0 | 47,800 | 230V / 1Ph / 60Hz | 840x319x840 mm | 5/8" - 3/8" |
| S/U-43PU3QA9 | 5.0 | 42,700 | 380-415V / 3Ph | 840x319x840 mm | 5/8" - 3/8" |
| S/U-48PU3QA9 | 6.0 | 47,800 | 380-415V / 3Ph | 840x319x840 mm | 5/8" - 3/8" |
The Panasonic PF3Q6/PF3Q9 Series is a split-type ceiling concealed ducted inverter air conditioner designed for light commercial and large residential spaces. The indoor unit is completely hidden above the ceiling and connects to ductwork for discreet, centralized air distribution — ideal for offices, retail spaces, restaurants, hotels, and upscale homes.
It comes in two electrical configurations: single-phase (PF3Q6: 220V / 1ph / 60Hz) covering 2.0 HP to 6.0 HP, and three-phase (PF3Q9: 400V / 3ph / 60Hz) for the 5.0 HP and 6.0 HP models. All units use environmentally friendly R32 refrigerant.
nanoe™ X Air Purification Technology — Panasonic's patented system generates hydroxyl radicals that actively inhibit bacteria, viruses, allergens, mould, and odours. Proven effective in large-space environments by third-party testing, and works 24 hours a day even when cooling is off.
Inverter Technology — Variable-speed compressor continuously adjusts output to match the actual cooling load, eliminating the energy waste of on/off cycling and delivering faster cooling with lower electricity consumption.
150 Pa External Static Pressure (ESP) — Industry-leading ESP capability allows the unit to push air through longer and more complex duct systems, making it suitable for multi-room or multi-zone ducted layouts.
Ultra-Slim 250 mm Height — The compact indoor unit fits in tight ceiling plenums where other ducted units cannot.
Low Noise from 20 dB(A) — Leading-class sound levels make it suitable for bedrooms, meeting rooms, and other noise-sensitive spaces.
Flexible Air Intake — Rear intake as standard, with support for both horizontal and vertical installation orientations.
CONEX Next-Generation Remote Control — Advanced controller for scheduling, zoning, and system management (optional accessory).
Auto-Restart & Self-Diagnosis — Automatically resumes operation after power interruption and displays error codes for easy troubleshooting.
1-Phase Models — PF3Q6 (220V / 1ph / 60Hz)
| Model | Rating | Cooling Capacity | Rated Current | Max Current | EER | Indoor Unit (W×H×D mm) | Indoor Wt | Outdoor Unit (W×H×D mm) | Outdoor Wt |
|---|---|---|---|---|---|---|---|---|---|
| S/U-18PF3Q6 | 2.0 HP | 18,000 BTU/h | ~8.4 A | ~12.0 A | ~10.50 | 1,000 × 250 × 700 | ~24 kg | 740 × 556 × 290 | ~30 kg |
| S/U-21PF3Q6 | 2.5 HP | 21,000 BTU/h | ~9.8 A | ~14.0 A | ~10.45 | 1,000 × 250 × 700 | ~24 kg | 740 × 556 × 290 | ~34 kg |
| S/U-24PF3Q6 | 3.0 HP | 24,500 BTU/h | ~11.2 A | ~16.0 A | ~10.45 | 1,200 × 250 × 700 | ~28 kg | 740 × 556 × 290 | ~36 kg |
| S/U-30PF3Q6 | 3.5 HP | 30,500 BTU/h | ~14.0 A | ~18.0 A | ~10.42 | 1,200 × 250 × 700 | ~30 kg | 870 × 700 × 320 | ~40 kg |
| S/U-34PF3Q6 | 4.0 HP | 34,100 BTU/h | ~15.8 A | ~20.0 A | ~10.40 | 1,200 × 250 × 700 | ~32 kg | 870 × 700 × 320 | ~44 kg |
| S/U-43PF3Q6 | 5.0 HP | 43,100 BTU/h | ~19.5 A | ~25.0 A | ~10.40 | 1,400 × 250 × 730 | ~37 kg | 980 × 996 × 370 | ~45 kg |
| S/U-48PF3Q6 | 6.0 HP | 48,500 BTU/h | 22.5 A | 28.0 A | 10.39 | 1,400 × 250 × 730 | 39 kg | 980 × 996 × 370 | 48 kg |
3-Phase Models — PF3Q9 (400V / 3ph / 60Hz)
| Model | Rating | Cooling Capacity | Rated Current | Max Current | EER | Indoor Unit (W×H×D mm) | Indoor Wt | Outdoor Unit (W×H×D mm) | Outdoor Wt |
|---|---|---|---|---|---|---|---|---|---|
| S/U-43PF3Q9 | 5.0 HP | 43,100 BTU/h | ~11.3 A | ~15.0 A | ~10.40 | 1,400 × 250 × 730 | ~37 kg | 980 × 996 × 370 | ~46 kg |
| S/U-48PF3Q9 | 6.0 HP | 48,500 BTU/h | ~13.0 A | ~17.0 A | ~10.39 | 1,400 × 250 × 730 | 39 kg | 980 × 996 × 370 | ~50 kg |
The Panasonic NX Series Standard Ceiling-Suspended (Ceiling-Exposed) Inverter Air Conditioner is a light-commercial, split-type system designed for wide-area cooling in offices, retail stores, restaurants, schools, and commercial spaces. It delivers powerful, uniform airflow distribution across large rooms from a sleek, ceiling-mounted indoor unit, paired with a high-efficiency inverter-driven outdoor unit using the environmentally friendlier R32 refrigerant.
This series integrates Panasonic's signature nanoe™ X air purification technology and supports smart IoT connectivity through the Comfort Cloud app and the CONEX next-generation remote controller platform.
Inverter Technology — The variable-speed inverter compressor continuously adjusts its output to match the actual cooling load, reducing energy consumption and maintaining precise, stable temperatures without the on/off cycling of conventional compressors.
nanoe™ X Air Purification (Generator Mark 2) — Produces 9.6 trillion hydroxyl (OH) radicals per second. These radicals inhibit certain bacteria, viruses, pollen, allergens, mould, and PM2.5 hazardous substances, while also neutralizing odours. The system can be operated 24 hours via the Panasonic Comfort Cloud app even when the aircon is off.
Wide & Long Airflow Distribution — Horizontal airflow reaches up to 9.5 meters, making the unit ideal for large, open rooms. The wide air discharge opening expands airflow to the left and right. A "Draft Prevention" swing position prevents direct air contact with occupants for enhanced comfort.
Slim, Unified Design — At only 235 mm in height (depth), the indoor unit installs neatly in spaces with limited ceiling clearance. All capacity sizes share the same height and depth dimensions for a consistent appearance in mixed-capacity installations.
IoT / Smart Control (CONEX) — Compatible with the Panasonic Comfort Cloud app for smartphone control and monitoring. Supports the CZ-RTC6BL Bluetooth-enabled wired remote controller for easy on-site system configuration.
External Fan / ERV Connection — The indoor unit PCB features a PAW-FDC connector for easy integration of an external fan or Energy Recovery Ventilator (ERV), controllable via the Panasonic remote controller.
Auto Restart — Automatically resumes the previous operation mode after a power interruption (Random Auto Restart).
Self-Diagnosis — Built-in self-diagnosis function simplifies troubleshooting and reduces service costs.
Multiple System Configurations — Supports Twin, Triple, and Double-Twin split configurations, allowing multiple indoor units to share one outdoor unit (subject to compatible outdoor models).
Power Supply (Standard Q6 models): 1 Phase / 230V / 60 Hz Refrigerant: R32 Compressor Type: Inverter Operation Mode: Cooling & Heating (Heat Pump)
| Specification | S/U-18PT3Q6 | S/U-21PT3Q6 | S/U-24PT3Q6 | S/U-30PT3Q6 | S/U-34PT3Q6 | S/U-43PT3Q6 | S/U-48PT3Q6 |
|---|---|---|---|---|---|---|---|
| Horsepower Rating | 2.0 HP | 2.5 HP | 3.0 HP | 3.5 HP | 4.0 HP | 5.0 HP | 6.0 HP |
| Cooling Capacity (BTU/h) | ~17,000 | ~20,500 | ~24,200 | ~27,300 | ~34,100 | ~40,900 | ~47,800 |
| Cooling Capacity (kW) | ~5.0 | ~6.0 | ~7.1 | ~8.0 | ~10.0 | ~12.0 | ~14.0 |
| Heating Capacity (kW) | ~5.6 | ~7.0 | ~8.0 | ~9.0 | ~11.2 | ~14.0 | ~16.0 |
| EER (BTU/h·W) | ~10.86 | ~10.86 | ~11.15 | ~10.57 | ~10.15 | ~10.12 | ~10.10 |
| Power Input – Cooling (W) | ~720–880 | ~1,240–1,570 | ~1,570–2,350 | ~1,740–3,350 | ~2,340–3,800 | ~3,500–4,650 | ~4,170–6,000 |
| Rated Current (Cooling, A) | ~7.0 | ~8.6 | ~10.4 | ~12.5 | ~15.0 | ~20.0 | ~25.0 |
| Indoor Unit Dimensions (W×H×D mm) | 960×235×690 | 960×235×690 | 1,275×235×690 | 1,275×235×690 | 1,590×235×690 | 1,590×235×690 | 1,590×235×690 |
| Indoor Net Weight (kg) | 26 | 26 | 34 | 34 | 40 | 40 | 40 |
| Outdoor Unit Dimensions (W×H×D mm) | 875×695×320 | 875×695×320 | 875×695×320 | 980×996×370 | 980×996×370 | 980×996×370 | 980×996×370 |
| Outdoor Net Weight (kg) | ~42 | ~42–43 | ~43 | ~66 | ~66–84 | ~84–86 | ~84–86 |
| Airflow – Hi/Med/Lo (m³/min) | 14/12/10.5 | 15/12.5/10.5 | 20/17/14.5 | 21/18/15.5 | 30/25/23 | 34/28/24 | 35/29/25 |
| Noise Level Indoor – Hi/Med/Lo (dB-A) | 36/32/28 | 37/33/28 | 38/34/29 | 39/35/30 | 42/37/34 | 46/40/35 | 47/41/36 |
| Noise Level Outdoor – Cooling (dB-A) | 43 | 43 | 47 | 48 | 52 | 55 | 56 |
| Piping – Gas Line (inch) | 1/2" | 1/2" | 1/2" | 5/8" | 5/8" | 5/8" | 5/8" |
| Piping – Liquid Line (inch) | 1/4" | 1/4" | 1/4" | 3/8" | 3/8" | 3/8" | 3/8" |
| Max Piping Length (m) | 30 | 30 | 30 | 60 | 100 | 100 | 100 |
| Max Elevation Difference (m) | 20 | 20 | 20 | 30 | 30 | 30 | 30 |
| Refrigerant Charge (kg) | ~1.13 | ~1.13 | ~1.15 | ~1.95 | ~2.70 | ~3.00 | ~3.00 |
| Operating Range – Cooling (°C) | -15 to +46 | -15 to +46 | -15 to +46 | -15 to +52 | -15 to +52 | -15 to +52 | -15 to +52 |
| Operating Range – Heating (°C) | -20 to +24 | -20 to +24 | -20 to +24 | -20 to +24 | -20 to +24 | -20 to +24 | -20 to +24 |
Models: CS-MU9YD3Z | CS-MU12YD3Z | CS-MU18YD3Z | CS-MU24YD3Z
The Panasonic Slim Ducted Inverter MU Series features a slim, compact design with 200mm height and a built-in drain pump to provide flexible installation in narrow ceiling spaces. Wide-angle airflow provides optimum cool air distribution across the room. Air conditioners can be managed from one mobile device with the Panasonic Comfort Cloud App (optional network adaptor CZ-TACG1 is required). The series achieves energy efficiency without compromising comfort with Inverter technology and R32 refrigerant.
1. Ultra-Slim 200mm Design The slim and compact design with 200mm height requires only 240mm of ceiling space for installation in narrow ceiling spaces, fitting discreetly into the ceiling cavity and offering a harmonious look while providing consistent cooling comfort.
2. Flexible Air Intake Options Air intake from the rear supports standard installation, while air intake from the bottom allows flexible installation in limited spaces, enabling easier maintenance and servicing.
3. High-Lift Built-In Drain Pump With the high-lift built-in drain pump, the drain pipe can be elevated up to 702mm from the base of the unit.
4. POWERFUL Mode When POWERFUL Mode is switched on, the internal setting temperature will shift lower and fan speed will increase, offering instant powerful cooling when you need to cool the space quickly after arriving home.
5. Quiet Mode Quiet Mode reduces the noise level of the indoor unit for a quiet, peaceful environment — ideal at bedtime or during study.
6. Panasonic Comfort Cloud App The Panasonic Comfort Cloud App can simultaneously monitor and control multiple air conditioners anytime, anywhere (optional network adaptor CZ-TACG1 required).
Technical Specification:| CS-MU9YD3Z | CS-MU12YD3Z | CS-MU18YD3Z | CS-MU24YD3Z | |
|---|---|---|---|---|
| HP Rating | 1.0 HP | 1.5 HP | 2.0 HP | 2.4 HP |
| Cooling Capacity (BTU/h) | 9,550 | 11,900 | 17,100 | 20,400 |
| Cooling Capacity (kW) | 2.8 kW | 3.5 kW | 5.0 kW | 6.0 kW |
| Refrigerant | R32 | R32 | R32 | R32 |
| Power Supply | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph |
| Recommended Room Size | Up to 15 m² | 16 – 20 m² | 24 – 30 m² | 30 – 35 m² |
| Unit Height (mm) | 200 | 200 | 200 | 200 |
| Minimum Ceiling Space Required | 240 mm | 240 mm | 240 mm | 240 mm |
| Drain Pump Lift Height | Up to 702 mm | Up to 702 mm | Up to 702 mm | Up to 702 mm |
| Air Intake Options | Rear / Bottom | Rear / Bottom | Rear / Bottom | Rear / Bottom |
| Airflow Direction | Wide-Angle to Ceiling | Wide-Angle to Ceiling | Wide-Angle to Ceiling | Wide-Angle to Ceiling |
| Fan Speeds | Lo / Me / Hi / Auto | Lo / Me / Hi / Auto | Lo / Me / Hi / Auto | Lo / Me / Hi / Auto |
| Noise Level – High dB(A) | 33 | 35 | 38 | 40 |
| Noise Level – Low dB(A) | 26 | 28 | 30 | 33 |
| Dimensions H×W×D (mm) | 200 × 700 × 550 | 200 × 700 × 550 | 200 × 950 × 620 | 200 × 950 × 620 |
| Weight (kg) | 14 | 15 | 20 | 22 |

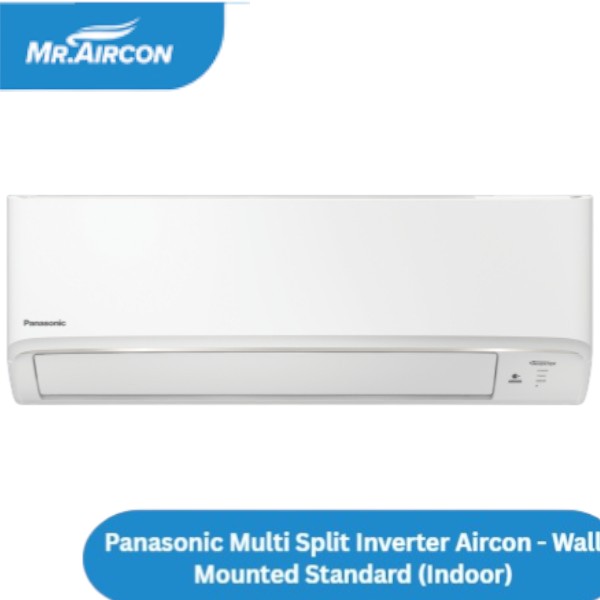

Models: CS-MPU9YKZ | CS-MPU12YKZ | CS-MPU18YKZ | CS-MPU24YKZ | CS-MPU28YKZ
The Panasonic Wall-Mounted Standard Inverter MPU Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP / AEROWINGS directs airflow further across the room, and the unit can be conveniently controlled and managed from mobile devices with the Panasonic Comfort Cloud App (optional network adaptor required). It achieves energy efficiency without compromising comfort with Inverter technology and R32 refrigerant.
The unit has a compact design that fits easily into any interior — whether above the door, close to the ceiling, or close to a wall. Its unique design structure also makes installation and maintenance simple and convenient.
1. POWERFUL Mode POWERFUL Mode cools the place faster by decreasing the setting temperature by 2°C and operating the indoor fan at a higher speed to create powerful instant cooling during start-up.
2. BIG FLAP (9K, 12K, 18K) / AEROWINGS (24K, 28K) The big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation — applicable to CS-MPU9YKZ, CS-MPU12YKZ, and CS-MPU18YKZ only. AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps, applicable to CS-MPU24YKZ and CS-MPU28YKZ.
3. Panasonic Comfort Cloud App Control multiple air conditioning units with the Panasonic Comfort Cloud App anywhere, anytime (optional network adaptor CZ-TACG1 is required). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting — all from just one mobile device.
4. Inverter Technology & R32 Refrigerant Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with a gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy.
5. Quiet Mode Quiet Mode reduces the noise level of the indoor unit for a quiet, peaceful environment. Noise level is reduced by 3 dB(A) from normal settings — applicable to CS-MPU9YKZ and CS-MPU12YKZ only.
6. Remote Controller The handheld wireless remote controller is easy to use, with commonly used functions for quick access. A wireless remote controller is included in the same package as the indoor unit. The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Technical Specification:| CS-MPU9YKZ | CS-MPU12YKZ | CS-MPU18YKZ | CS-MPU24YKZ | CS-MPU28YKZ | |
|---|---|---|---|---|---|
| HP Rating | 1.0 HP | 1.5 HP | 2.0 HP | 2.4 HP | 2.8 HP |
| Cooling Capacity (BTU/h) | 9,550 | 11,900 | 17,100 | 20,400* | 24,200* |
| Cooling Capacity (kW) | 2.8 kW | 3.5 kW | 5.0 kW | 6.0 kW* | 7.1 kW* |
| Refrigerant | R32 | R32 | R32 | R32 | R32 |
| Power Supply | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph |
| Recommended Room Size | Under 15 m² | 16 – 20 m² | 20 – 30 m² | 30 – 35 m² | 35 – 40 m² |
| Airflow Technology | BIG FLAP | BIG FLAP | BIG FLAP | AEROWINGS | AEROWINGS |
| Noise Level – High dB(A) | 38 | 40 | 43 | 45 | 46 |
| Noise Level – Low dB(A) | 25 | 28 | 32 | 35* | 37* |
The Panasonic X-Deluxe Series Wall-Mounted Indoor Unit is a premium multi-split inverter air conditioning solution designed for modern homes and commercial spaces. Built with Panasonic's advanced inverter technology, it delivers exceptional energy efficiency, precise temperature control, and whisper-quiet operation. Its sleek, contemporary design blends seamlessly into any interior, while its intelligent features — including nanoe™X air purification and econavi sensors — ensure both comfort and healthy air quality. Ideal for multi-room setups, this indoor unit pairs with a compatible Panasonic multi-split outdoor unit.
| CS-MXPU9YKZ | CS-MXPU12YKZ | CS-MXPU18YKZ | CS-MXPU24YKZ | CS-MXPU28YKZ | |
|---|---|---|---|---|---|
| HP Rating | 1.0 HP | 1.5 HP | 2.0 HP | 2.4 HP | 2.8 HP |
| Cooling Capacity (BTU/h) | 9,550 | 11,900 | 17,700 | 20,500 | 24,200* |
| Cooling Capacity (kW) | 2.8 kW | 3.5 kW | 5.2 kW | 6.0 kW | 7.1 kW |
| Refrigerant | R32 | R32 | R32 | R32 | R32 |
| Power Supply | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph | 220–240V / 50Hz / 1Ph |
| Dimensions H×W×D (mm) | 290 × 779 × 209 | 290 × 779 × 209 | 302 × 1,120 × 241 | 302 × 1,120 × 241* | 302 × 1,120 × 241* |
| Recommended Room Size | Up to 15 m² | 16 – 20 m² | 21 – 28 m² | 30 – 35 m² | 35 – 40 m² |

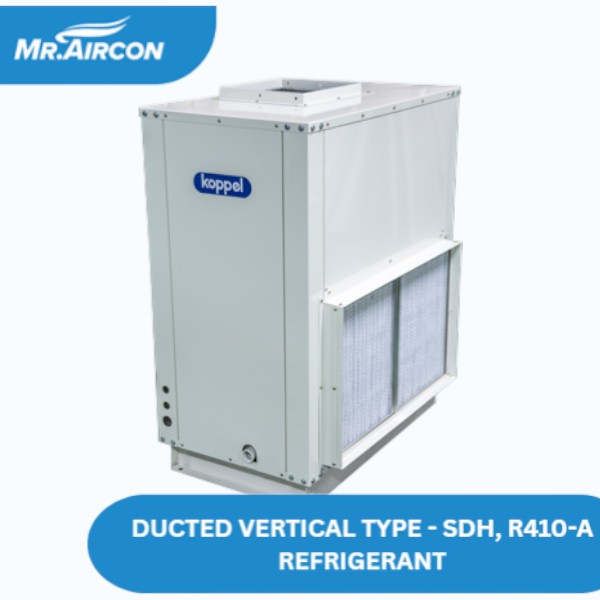

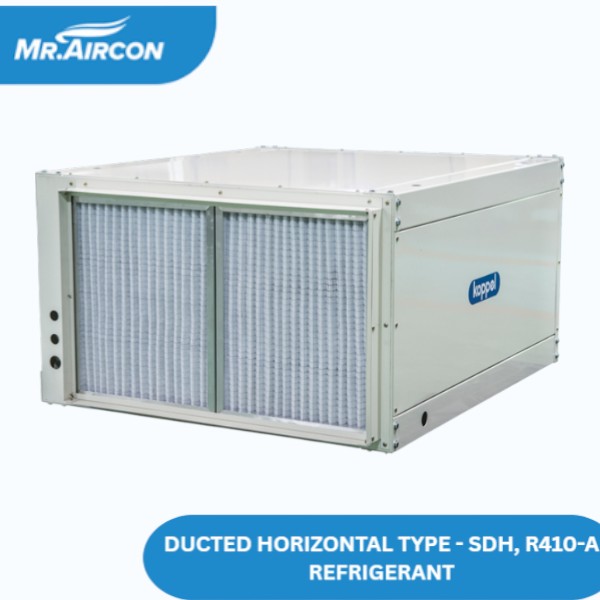

The Koppel Unitary Ducted (KUD Series) is an industrial-grade, single-package style air conditioning solution designed for massive cooling requirements. Unlike standard split systems where the evaporator and condenser are separate, the Unitary Ducted series often features a "bundled" design philosophy for powerful air circulation in high-occupancy commercial and industrial spaces.
Powerful Air Circulation: Specifically engineered to push air through a complex network of ducts, ensuring uniform cooling in expansive areas like factories, hotel lobbies, and large offices.
Heavy-Duty Reliability: Built with a high-strength, anti-rust, and corrosion-resistant body that can withstand external exposure and long hours of continuous operation.
Efficient Fan System: Uses high-static pressure centrifugal fans, allowing for longer duct runs without a significant drop in airflow or cooling performance.
Scroll Compressor Technology: Larger models (5.0TR and above) utilize reliable scroll compressors that offer better efficiency and quieter operation under heavy load compared to standard rotary types.
Eco-Friendly Performance: Uses R410A refrigerant, providing high heat-exchange efficiency with zero ozone depletion potential.
| Capacity (TR) | Cooling Capacity (kJ/h) | Power Supply (V/Hz/Ph) | Rated Power (W) | Rated Current (A) | EER (kJ/W-h) | Airflow (CMH) |
| 3.0 TR | 39,305 | 230/60/1 | 3,980 | 17.4 | 9.81 | 2,000 |
| 5.0 TR | 63,300 | 230/60/3 | 6,500 | 21 | 10 | 3,600 |
| 7.5 TR | 94,950 | 230/60/3 | 10,340 | 30 | 9 | 5,300 |
| 10.0 TR | 126,600 | 230/60/3 | 12,800 | 35 | 9.89 | 6,100 |
| 15.0 TR | 189,900 | 230/60/3 | 21,500 | 62 | 9 | 9,000 |
| Capacity (TR) | Indoor Dim (WxDxH) mm | Outdoor Dim (WxDxH) mm | Liquid Pipe (in) | Gas Pipe (in) | Max Length (m) | |
| 3.0 TR | 918x1000x539 | 936x355x812 | 3/8" | 5/8" | 30 | |
| 5.0 TR | 1188x762x637 | 936x355x1268 | 1/2" | 7/8" | 30 | |
| 7.5 TR | 1368x914x749 | 810x810x783 | 5/8" | 1-1/8" | 30 | |
| 10.0 TR | 1378x864x764 | 1000x1000x983 | 3/4" | 1-1/8" | 50 | |
| 15.0 TR | 1727x864x890 | Dual Case* | 5/8" | 1-1/8" | 30 |
Uniform Air Distribution: Designed to connect to a series of ducts, allowing for consistent cooling across multiple areas or large rooms from a single indoor unit.
Heavy-Duty Construction: Built to withstand the rigorous demands of commercial use. It features a robust cabinet and high-reliability scroll or rotary compressors.
High Static Pressure: Equipped with powerful fan motors (up to 5HP) that can push air through long duct runs without losing cooling efficiency.
Anti-Rust Cabinet: The unit’s exterior is treated with a corrosion-resistant coating, ensuring longevity even in humid or harsh environments.
Flexible Capacity: Available in an extensive range from 3.0TR (Tons of Refrigeration) up to 20.0TR, making it scalable for projects of any size.
| Indoor Unit | KSDH-36W | KSDH-60C | KSDH-60C | KSDH-90C | KSDH-120C | KSDH-120DC | KSDH-120DC | KSDH-120DC | KSDH-180DC | KSDH-240DC | |
| Outdoor Unit | KPC-36IH0W | KPC-60IH0BC | KPC-60IV0BC | KPC-90IV0C | KPC-120IV0C | KPC-120IVD0C | 2× KPC-60IH0BC | 2× KPC-60IV0BC | 2× KPC-90IV0C | 2× KPC-120IV0C | |
|
Cooling Capacity |
TR | 3 | 5 | 5 | 7.5 | 10 | 10 | 10 | 10 | 15 | 20 |
| BTU/Hr | 37,000 | 60,000 | 60,000 | 90,000 | 120,000 | 120,000 | 120,000 | 120,000 | 180,000 | 240,000 | |
| kJ/Hr | 39,305 | 63,300 | 63,300 | 94,950 | 126,600 | 126,600 | 126,600 | 126,600 | 189,900 | 253,200 | |
| Power Supply | V/Hz/Ph | 230/60/1 | 230/60/3 | 230/60/3 | 230/60/3 | 230/60/3 | 230/60/3 | 230/60/3 | 230/60/3 | 230/60/3 | 230/60/3 |
| Rated Power | W | 3,980 | 6,500 | 6,500 | 10,340 | 12,800 | 12,800 | 12,800 | 12,800 | 21,500 | 25,600 |
| Rated Current | A | 17.4 | 20.5 | 20.5 | 29.5 | 35 | 35 | 35 | 35 | 61.5 | 70 |
| EER | BTU/W-Hr | 9.3 | 9.23 | 9.23 | 8.7 | 9.38 | 9.38 | 9.38 | 9.38 | 8.37 | 9.38 |
| kJ/W-Hr | 9.81 | 9.74 | 9.74 | 9.18 | 9.89 | 9.89 | 9.89 | 9.89 | 8.83 | 9.89 | |
| Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | |
| Operation Temperature (Min-Max) | °C | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 | 17-30 |
| Applicable Area (Unloaded Space) | SQM | 42-66 | 70-110 | 70-110 | 105-165 | 140-220 | 140-220 | 140-220 | 140-220 | 210-330 | 280-440 |
| Indoor Airflow Volume (Hi) | CMH | 2,000 | 3,600 | 3,500 | 5,300 | 5,400 | 6,100 | 6,100 | 6,100 | 9,000 | 17,100 |
| Indoor | |||||||||||
| Rated External Static Pressure | Pa | 50 | 75 | 75 | 125 | 175 | 175 | 175 | 175 | 250 | 350 |
| Motor | HP | 1/3 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Unit Dimension (W×D×H) | mm | 918x1000x539 | 1,188×762×637 | 1,188×762×637 | 1,368×914×749 | 1,378×864×764 | 1,378×864×764 | 1,378×864×764 | 1,378×864×764 | 1,727×864×890 | 1,780×1,700×747 |
| Packaging Dimension (W×D×H) | mm | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Unit Weight | Kg | 125 | 136 | 136 | 141 | 214 | 214 | 214 | 214 | 282 | 773 |
| Outdoor | |||||||||||
| Compressor Type | |||||||||||
| Number of Compressor | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | |
| Unit Dimension (W×D×H) | mm | 936×355×812 | 936×355×1,268 | 810×810×727 | 810×810×783 | 1,000×1,000×983 | 1,000×1,000×983 | (936×355×1,268) /unit | (810×810×727) /unit | (810×810×783) /unit | (1,000×1,000×983) /unit |
| Packaging Dimension (W×D×H) | mm | 1,079×449×854 | 1,087×457×1,306 | 865×865×690 | 865×865×753 | N/A | N/A | (1,087×457×1,306) /unit | (865×865×690) /unit | (865×865×753 /unit | N/A |
| Unit Weight (Net/Gross) | Kg | 72/76 | 110/115 | 92/96 | 98/102 | 173 | 205 | (110/115) /unit | (92/96) /unit | (98/102) /unit | (173) /unit |
| Piping Connections | |||||||||||
| Liquid Pipe Size (Diameter) | mm (in) | Ø9.53 (Ø3/8) | Ø12.7 (Ø1/2) | Ø12.7 (Ø1/2) | Ø15.88 (Ø5/8) | Ø19.05 (Ø3/4) | Ø12.7 (Ø1/2) | Ø12.7 (Ø1/2) | Ø12.7 (Ø1/2) | Ø15.88 (Ø5/8) | Ø19.05 (Ø3/4) |
| Gas Pipe Size (Diameter) | mm (in) | Ø15.88 (Ø5/8) | Ø22.23 (Ø7/8) | Ø22.23 (Ø7/8) | Ø28.58 (Ø1 1/8) | Ø28.58 (Ø1 1/8) | Ø22.23 (Ø7/8) | Ø22.23 (Ø7/8) | Ø22.23 (Ø7/8) | Ø28.58 (Ø1 1/8) | Ø28.58 (Ø1 1/8) |
| Max. Refrigerant Pipe Length | m | 30 | 30 | 30 | 30 | 50 | 50 | 30 | 30 | 30 | 50 |
| Max. Difference in Level | m | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
The Koppel Ceiling Concealed Super Inverter (R410A) is a robust, high-efficiency light commercial air conditioning unit designed for spaces that require powerful cooling without a visible indoor unit. By utilizing R410A refrigerant and advanced DC inverter technology, it provides a balance of performance and eco-friendliness.
Invisible Comfort: The indoor unit is completely hidden within the ceiling, leaving only the air supply and return grilles visible. This makes it a top choice for architects and interior designers seeking a minimalist look.
Superior Energy Efficiency: Equipped with a DC Inverter compressor that adjusts cooling power based on the room's needs, reducing energy consumption by up to 50% compared to fixed-speed models.
Eco-Friendly R410A: Uses a non-ozone depleting refrigerant that is safer for the environment while maintaining high heat transfer efficiency.
Quiet Design: Engineered with a large-diameter fan that delivers a high volume of airflow at lower rotation speeds, keeping indoor noise levels between 38.5 dB and 52 dB depending on the model capacity.
Centralized Control: Comes with a standard wired remote controller (expandable up to 5 meters), allowing for precise temperature management and reliable signal transmission.
| Feature | 2.0 TR | 3.0 TR | 4.0 TR | 5.0 TR (1-Ph) |
| Indoor Model | KV24DH-ARF21C2 | KV36DH-ARF21C2B | KV48DH-ARF21C2 | KV60DH-ARF21C2C |
| Outdoor Model | KV24ODU-ARF21C2 | KV36ODU-ARF21C2B | KV48ODU-ARF21C2 | KV60ODU-ARF21C2C |
| Cooling (kJ/h) | 25,320 | 40,090 | 50,640 | 63,300 |
| Power (V/Hz/Ph) | 208-230/60/1 | 208-230/60/1 | 208-230/60/1 | 208-230/60/1 |
| Rated Power (W) | 1,920 | 3,750 | 4,800 | 5,500 |
| Rated Current (A) | 9.31 | 18.3 | 23.1 | 25 |
| EER (kJ/hW) | 13.19 | 10.7 | 10.56 | 11.53 |
| Area (sqm) | 24-40 | 38-63 | 48-80 | 60-100 |
| Airflow (CMH) | 1,318 | 1,839 | 2,088 | 3,665 |
| Noise (Low dB) | 35.5 | 38.5 | 46 | 51 |
| Indoor Dim (mm) | 1,100×774×249 | 1,360×774×249 | 1,200×874×300 | 1,400×858×440 |
| Indoor Weight (kg) | 39.4 | 48.3 | 54.3 | 74 |
| Outdoor Dim (mm) | 946×410×810 | 946×410×810 | 952×415×1,333 | 952×415×1,333 |
| Outdoor Weight (kg) | 63 | 67.4 | 101 | 102.1 |
| Liquid Pipe | 3/8" (9.52mm) | 3/8" (9.52mm) | 3/8" (9.52mm) | 3/8" (9.52mm) |
| Gas Pipe | 5/8" (15.9mm) | 5/8" (15.9mm) | 5/8" (15.9mm) | 3/4" (19.05mm) |
| Max Pipe Len (m) | 50 | 65 | 65 | 65 |
| Max Height (m) | 25 | 30 | 30 | 30 |
Here is a breakdown of the product's key features and specifications:
Space-Saving Design: Its slim profile allows for installation in tight ceiling spaces, making it ideal for offices, hotels, and modern homes.
R410A Refrigerant: Uses an eco-friendly, non-ozone depleting refrigerant that provides high cooling efficiency.
Quiet Operation: Equipped with a large-diameter fan that moves a high volume of air at lower speeds, significantly reducing indoor noise levels.
Flexible Control: Typically comes with a wired remote for stable and easy access to settings, though wireless options are often available.
Durability: Features an anti-rust body and a corrosion-resistant cabinet to ensure a long operational lifespan.

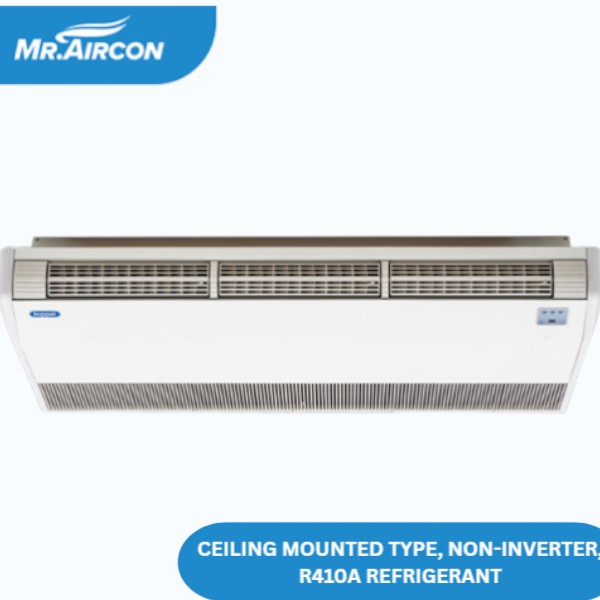

A commercial ceiling mounted air conditioning system designed for medium to larger indoor spaces such as offices, shops, restaurants, studios, or warehouses. It uses robust non-inverter compressor technology for reliable cooling performance and eco-friendly R410A refrigerant, which has no ozone depletion potential. This unit is ideal where consistent, powerful cooling is needed without variable compressor speed features (inverter).
Key Features:
R410A Refrigerant — Environmentally friendly refrigerant with zero ozone depletion potential (ODP), keeping the environment protected while delivering strong cooling capacity.
Ceiling Mounted Design — Space-saving installation that keeps floor and wall areas clear, perfect for commercial applications with limited interior room space.
Non-Inverter Operation — Traditional compressor type provides stable, consistent cooling output, good for regular duty cycles.
Auto-Restart Function — Automatically restores previous settings after power interruptions for peace of mind.
24-Hour Timer — Programmable timer helps manage cooling schedules and reduce energy waste.
Auto Swing — Airflow direction adjusted automatically for even distribution throughout the room.
Easy Installation & Maintenance — Designed for simpler servicing and installation in ceiling applications.
Durable Build — Heavy-duty components and anti-rust body materials for long operating life in demanding environments.
Overview The Lunaire Series is part of Koppel's Super Inverter line, designed for high-performance cooling with up to 60% energy savings. It carries a 5-Star DOE energy rating and uses R32 refrigerant, making it both energy-efficient and eco-friendly.
Available Capacities: 1.0 HP | 1.5 HP | 2.0 HP | 2.5 HP | 3.0 HP
Key Features:
